DXEC30, DORIX Rim Electronic Cylinder
UK Engineered, RFID, NFC, Bluetooth, Mobile App, IP68, 3-star Cylinder
Product Overview
The Dorix DXEC30 is a high-security smart cylinder designed for doors with rim-style lock cases. Like other members of the Dorix Cylinder series, it offers seamless access control via RFID, NFC, and app-based unlocking over Bluetooth. Its compact and durable construction makes it suitable for residential and commercial entry points.
- Availability: In stock – Delivery within 3-5 working days.
- Shipping & Return information: Free delivery across the UK. 30-day return policy.
£180.00 (Inc. VAT)
- Key Features
- Compatibility
- Description
- Technical Details
- Resources
- FAQs
- Reviews (0)
- Unlock via RFID card, NFC, or Mobile App (Bluetooth)
- Brass-built Euro profile cylinder with anti-drill and anti-pick protection
- IP68-rated waterproof body for indoor and outdoor use
- Up to 25,000 opening cycles (approx. 2 years of battery life)
- External USB emergency power port for backup access
- Store up to 1,000 user credentials
- Low battery alert and mobile app notifications
- Easy retrofit installation – no wiring or drilling
- Advanced anti-tamper protection built-in
Description
The Dorix DXEC30 brings smart control to doors fitted with rim cylinders, offering a discreet but powerful upgrade to mechanical key systems. It’s built for ease of installation, allowing users to swap out traditional cylinders with zero disruption and without the need for specialist tools.
Unlock your door with RFID, NFC, or your phone – and manage access from anywhere using the intuitive app. The DXEC30 offers weatherproof performance and secure app integrations, ideal for private, shared, or high-traffic entrances.
Anti-Tamper Protections
- Anti-drill
- Anti-pick
- Anti-bump
- Anti-snap
- Anti-pull
- Anti-freely rotating core
- Anti-high-frequency resonance interference
Accessories
- Fixing kit and screws
- User and installation manual
- RFID cards
Maintenance
- Replace batteries every 18-24 months, depending on usage
- Wipe with a dry cloth to clean the reader area
- Keep emergency USB port unobstructed
Warranty & & Support
- 2-year warranty (mechanical and electronic)
- UK-based support
- Material: Brass cylinder
- Power: 2 x CR2 lithium batteries
- Battery Life: Up to 25,000 cycles (approx. 2 years)
- Reading Range: <20mm
- Operating Temperature: -25°C to 65°C
- Working Humidity: 20% – 90%
- External Emergency Power: USB port
- Entry Methods: RFID card, NFC, Bluetooth
- Capacity: Up to 1,000 users
- Low Voltage Warning: <4.8V (approx. 100 operations remain)

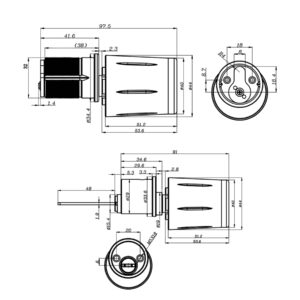

- Cylinder Length: Standard rim-fit dimensions
- Door Thickness Compatibility: 35–100mm
- Reader Dimensions: 53.6 x 44mm
- Technical Datasheet
- Installation and Setup Manual
- Installation video
- Is DXEC30 compatible with rim-style locks?
Yes, it’s designed explicitly for rim cylinder lock types. - Is this suitable for external use?
Yes. It’s fully waterproof and IP68-rated. - Does it require an internet connection?
No. Bluetooth works locally. Wi-Fi gateway is optional. - Can I grant timed or permanent access?
Yes, through the app’s virtual key settings. - What happens if the battery runs out?
Use a USB power bank to temporarily restore power. - Can it be used in rental or commercial properties?
Absolutely – it’s well-suited for shared and high-use spaces. - What types of cards are supported?
MIFARE 13.56MHz cards and compatible NFC devices. - Does the app keep track of users?
Yes, full access logs are available via the app. - How secure is the lock physically?
It’s protected against drilling, bumping, picking, and pulling. - How many users can I add?
Up to 1,000 via app and RFID/NFC cards.
