Description

Designed for the unique needs of Scandinavian cylinder fittings, the Dorix DXEC50 offers seamless access control with powerful app integration. Ideal for apartment doors, commercial entries, or external access points, this smart cylinder is built from hardened brass and engineered for high-resistance protection.

Installation is straightforward and tool-light – simply swap out your existing oval profile cylinder. The Bluetooth app lets you manage users, assign timed access, and monitor logs, all in real time.

Anti-Tamper Protections

• Anti-drill
• Anti-pick
• Anti-bump
• Anti-snap
• Anti-pull
• Anti-freely rotating core
• Anti-high-frequency resonance interference

Accessories

• Fixing kit and screws
• User and installation manual
• RFID cards

Maintenance

• Replace batteries every 18-24 months, depending on usage
• Wipe with a dry cloth to clean the reader area
• Keep emergency USB port unobstructed

Warranty & & Support

• 2-year warranty (mechanical and electronic)
• UK-based support

• Material: Brass cylinder
• Power: 2 x CR2 lithium batteries
• Battery Life: Up to 25,000 cycles (approx. 2 years)
• Reading Range: <20mm
• Operating Temperature: -25°C to 65°C
• Working Humidity: 20% – 90%
• External Emergency Power: USB port
• Entry Methods: RFID card, NFC, Bluetooth
• Capacity: Up to 1,000 users
• Low Voltage Warning: <4.8V (approx. 100 operations remain)
• Cylinder Length: Scandinavian fit, compatible with standard threaded installations
• Door Thickness Compatibility: 35–100mm

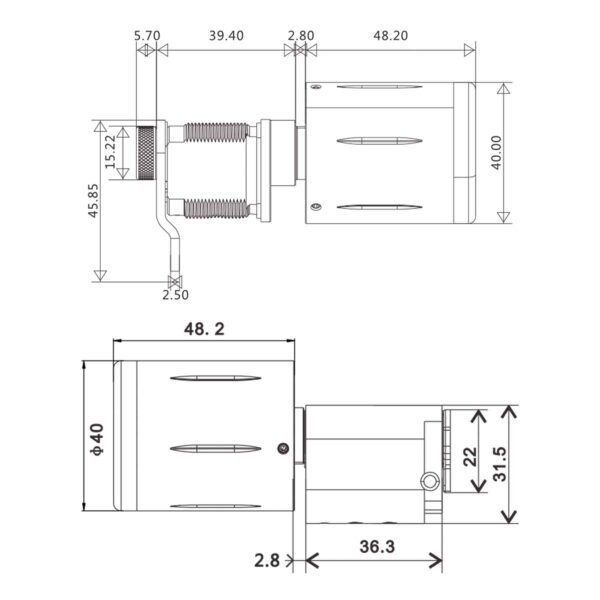

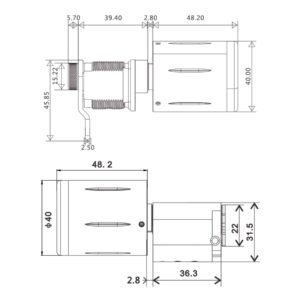

• Reader Dimensions: 53.6 x 44mm

• Technical Datasheet
• Installation and Setup Manual
• Installation video

1. Is DXEC50 compatible with my Scandinavian cylinder door?

Yes – it is specifically designed for oval profile cylinder fittings.

1. Does it require wiring?

No. It’s a fully battery-operated smart cylinder – no wiring needed.

1. How long does the battery last?

Up to 2 years or 25,000 unlock cycles.

1. What happens when batteries die?

Use the USB-C port to temporarily power it via a power bank.

1. Can it be used outdoors?

Yes. It meets IP67 standards for water and dust resistance.

1. Is it secure against tampering?

Absolutely – with anti-pick, anti-drill, anti-pull and bump-proof design.

1. Does it support multiple users?

Yes, it stores up to 1,000 user credentials.

1. How do I set it up?

Use the mobile app to configure users and settings.

1. Does it integrate with Wi-Fi?

Only with a gateway add-on. App works locally over Bluetooth.

1. Can I manage multiple locks in one app?

Yes – ideal for managing property portfolios or shared buildings.
