Description

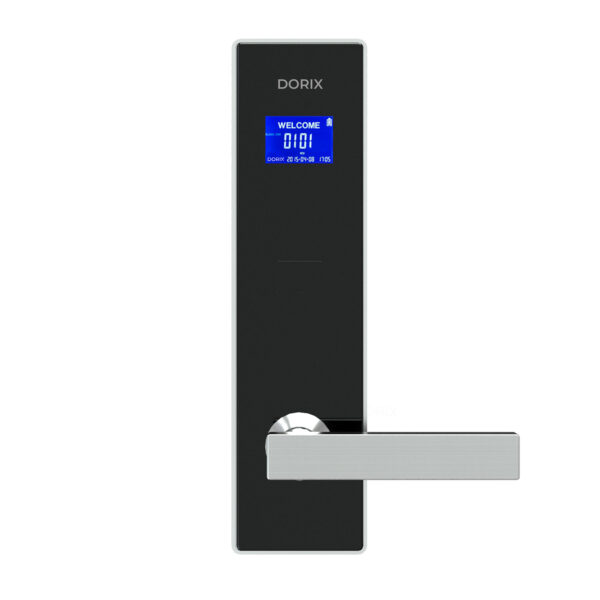

The DXEL31 is the perfect solution for sites requiring visible access control with a modern, intuitive interface. Its LCD display is designed to welcome guests and provide real-time feedback including room number, time, battery status, and operational alerts.

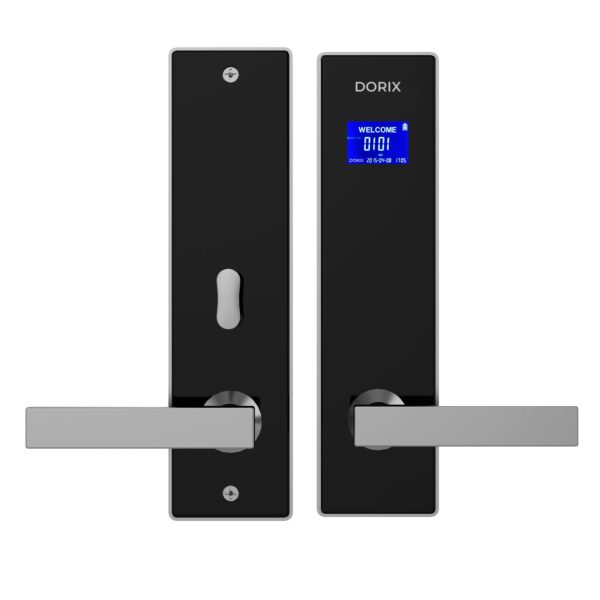

The lock is housed in a brushed 304 stainless steel body with a PMMA panel for resilience against moisture, heat, and impact. Its ANSI-grade mortise ensures fire safety and anti-tamper integrity while remaining quiet and smooth in use.

Ideal for multi-room facilities, the DXEL31 is easily integrated into new or existing PMS infrastructures and can operate both offline and with optional wireless connectivity.

Colour Options

• Black Panel
• Housing and handle: Silver, Black, Gold, Rose Gold

Opening Way

• Designed for inward or outward opening doors
• Supports left- or right-hand installations (specify when ordering)

Accessories

• Fixing kit and screws
• User and installation manual
• DXCC10 RFID Cards (Optional)
• DXEN10 Encoder (Optional)
• DXLP10 Programmer (Optional)
• DXMC20 Mechanical key override (Optional)

Maintenance

• Replace batteries every 12-18 months
• Download logs via DORIX portable programmer or wireless module
• Firmware updates via Dorix programmer (if connected)

Warranty & & Support

• 2-year warranty (mechanical and electronic)
• UK-based support
• On-site installation support available on request

Integration assistance for PMS systems

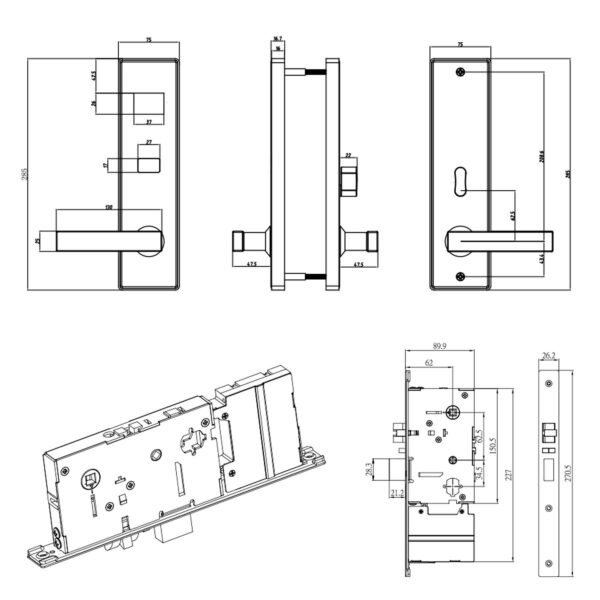

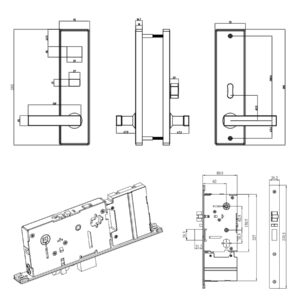

• Front Panel Dimensions: L285 mm x W75 mm x D16 mm
• Power Supply: 4 x AA alkaline batteries (DC6V)
• Battery Life: 12–24 months
• Low Voltage Alarm: < 4.8V
• Unlocking Records: 1,680 (standard) / 3,360 (optional)
• Keycard Type: MIFARE 13.56 MHz
• Static Current: <30 µA
• Dynamic Current: <200 mA
• Door Thickness: 35–70 mm
• Working Temperature: -20°C to 60°C
• Humidity: 20% to 90% RH

• Technical Datasheet

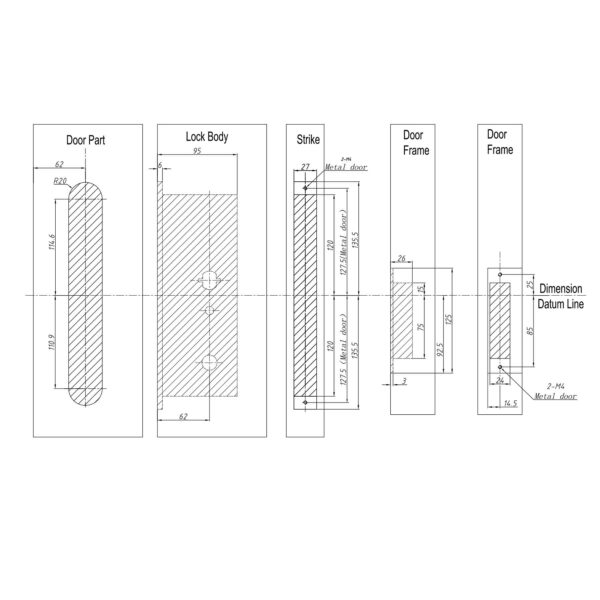

• Drilling Drawing
• Installation and Setup Manual
• Installation video

1. What information does the LCD display show?
   Room number, welcome message, battery, time/date, and error alerts.
2. Is this lock suitable for hospitals or schools?
   Yes, it’s ideal for healthcare, education, and residential projects.
3. Does it work with MIFARE wristbands or fobs?
   Yes, it supports MIFARE 13.56 MHz format.
4. Can I retrofit this on an existing hotel door?
   Yes, provided mortise prep matches the supported ANSI format.
5. Is the LCD screen always on?
   No, it activates upon approach or usage for energy saving.
6. What happens if the battery dies?
   Use the mechanical override key.
7. Can I sync this with mobile key solutions?
   Yes, with optional Bluetooth or online module.
8. What fire safety standards does it meet?
   CE, UL10C, and BHMA A156 for up to 180 minutes.
9. Can I connect it to lifts or spa access points?
   Yes, works with hotel-wide RFID integrations.
10. Is it compatible with my PMS?
    It supports all major PMS platforms, including Opera and FIAS protocol.
