Description

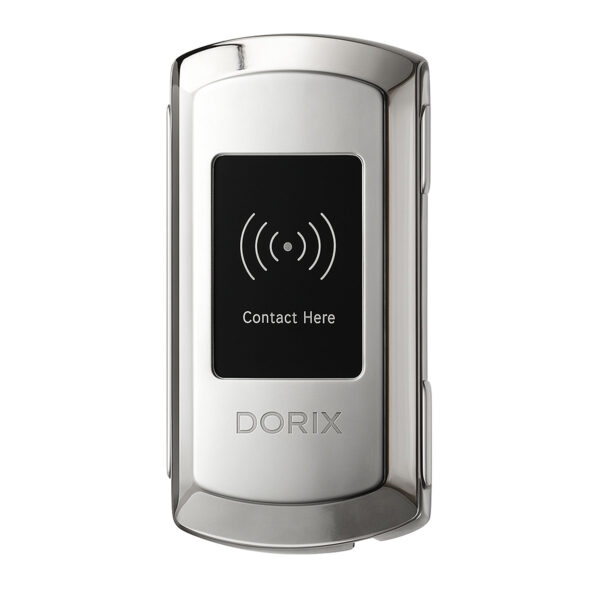

Dorix DXEL71 provides flexible and maintenance-light locker access for spaces that require durable, self-contained security. It allows direct programming of user cards on the device itself with no extra equipment. For larger installations, an optional software mode enables centralised setup via an encoder.

The lock re-engages automatically after each unlock, and includes an external USB emergency power interface to ensure uninterrupted operation even during battery depletion. It’s ideal for installations in moist environments and supports master key functionality for facilities management.

Colour Options

• Silver, Gold

Working Modes

1. Standard Mode:
   • Works with ID or MIFARE card
   • Cards programmed directly on the lock
   • Self-locking after each unlock
2. Customised (Software) Mode:
   • Requires software and encoder
   • Enables advanced access management and key issuance

Accessories

• Fixing kit and screws
• User and installation manual
• RFID key tags, wristbands, or cards
• DXEN10 Encoder (Optional)

Maintenance

• Replace batteries every 6–9 months, depending on usage
• Wipe with a dry cloth to clean the reader area
• Keep emergency USB port unobstructed

Warranty & & Support

• 2-year warranty (mechanical and electronic)
• UK-based support
• On-site installation support available on request
• Integration assistance for PMS systems

• Lock Type: RFID Electronic Cabinet Locker Lock
• Material: Zinc Alloy
• Power Supply: 4 x AA batteries (6V)
• Card Compatibility: 125kHz ID or 13.56MHz MIFARE chip
• Card Types: RFID wristband, key tag, PVC/silicone card
• Low Voltage Alarm: <4.8V with ~100 remaining unlocks
• Emergency Power Access: USB power port
• Locking Mechanism: Standard single latch
• Operating Temp: -20°C to 60°C
• Operating Humidity: <80%
• Auto Door Release: Unlock triggers door pop-open

• Technical Datasheet
• Installation and Setup Manual
• Installation video

1. Can I install DXEL71 without software?
   Yes, it operates fully standalone with cards programmed directly on the lock.
2. How do I open the door if batteries run out?
   Use the USB port to connect a power bank, then use your access card as usual.
3. Is the door spring-loaded to pop open?
   Yes, it automatically opens after a valid card is read.
4. Is software integration required?
   No, but it’s available for clients who prefer centralised access management.
5. What materials are supported for cards and wristbands?
   Both PVC and silicone formats are compatible.
6. What is the supported card frequency?
   125kHz ID cards or 13.56MHz MIFARE RFID.
7. Can the unit be reused with new users?
   Yes, simply reprogram with a new card at the unit.
8. Can a single master card work across all lockers?
   Yes, the master card unlocks all programmed DXEL71 locks.
9. Does the lock re-lock itself?
   Yes, it automatically engages the latch after use.
10. Is this suitable for damp areas?
    Yes, the DXEL71 is designed for environments like gyms, pools and spas.
