Description

DORIX proudly presents its first-of-its-kind Smart Door, offering a ground-breaking fusion of Italian design flair and British engineering excellence. Built to surpass existing standards in both aesthetics and security, these doors exude elegance while providing robust protection for homes and businesses throughout the UK and EU.

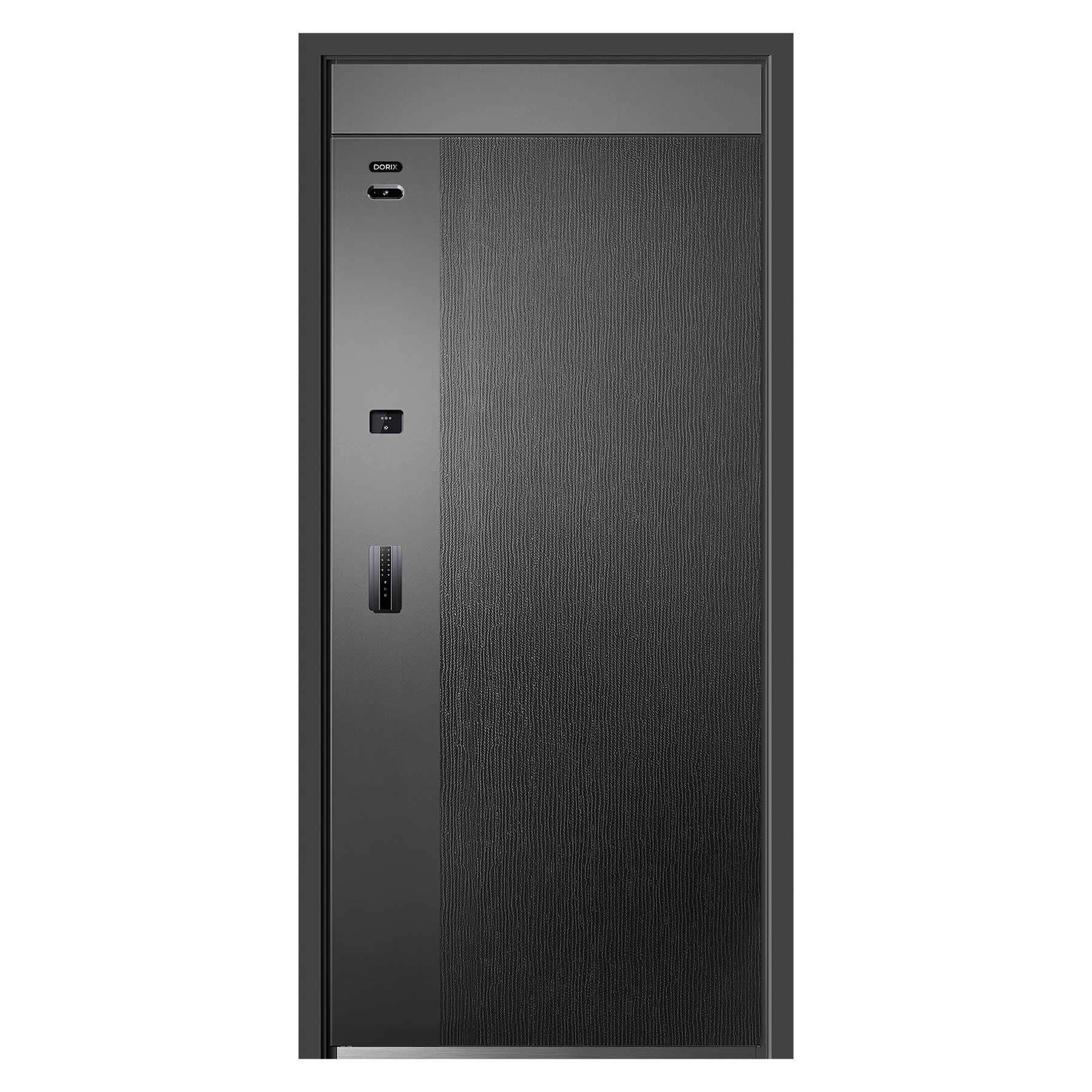

The DXSD10 Smart Steel Door is engineered for properties that demand both protection and convenience. Constructed from industrial-grade zinc steel and finished with a nanometre coating, it resists corrosion and tampering while maintaining a sleek, understated aesthetic.

Whether you’re at home, at work, or on holiday, the DXSD10 keeps you connected through the app, offering instant alerts, remote unlocking, and integration with leading smart home systems. This is not just a door; it’s a fully integrated smart security solution for modern living.

DORIX Door Types

Available configurations with single/double doors and optional sidelights or side panels:

(Custom configurations, including varying side/sidelight panel widths, are also offered.)

Opening Way

DORIX Door Sizes

• Width:  700-1550 mm
• Height: 2000-2700 mm
• Sidelight/Panel width: 200-800 mm
• Toplight Height: 200-800 mm

Colours and Designs

• Front Panel Colours: Grey, Walnut
• Back Panel Colours: Grey, Walnut
• Front Panel Designs: Pattern 01–05

(Custom colours and designs are available for larger orders subject to MOQ).

Construction & Materials

• Door leaf: 1.0 mm cold-rolled steel with fluorocarbon spray finish.
• Door frame: 2.0 mm steel with matching finish
• Typical thickness: ~90 mm.
• Infill: Flame-retardant XPS or honeycomb
• Hinges: 3 concealed hinges (3.0 mm cold-rolled steel)

Lock and Handle

• 8-bolt auto-locking electromechanical lock body
• Instant locking once closed, tested over 200,000 cycles without failure.
• Handle Types: Elite, Lever, Designer

• Cylinder: high-security anti-pick and anti-drill

Smart Features

• Dual AI cameras (top and mid-position)
• 140° wide-angle with night vision (IR 850 nm)
• Motion detection, snapshot, and video call alerts
• Voice-changing intercom
• Up to 128 GB local storage for video logs
• Smart Home Integration: Alexa, Google Home
• Customised Real-time Notifications: Nudges for forced entry attempts, repeated passcode failures, doorbell usage, battery status, or an open-door state.
• Adaptive Algorithm

Screen

• Indoor display: 5.5″ or 10.1″ touchscreen (720p) for live viewing and system control.

Power & Installation

• 10,000 mAh lithium battery (1-year life)
• Type-C emergency power input
• Optional mains connection
• Supplied pre-hung with frame and integrated components

Fireproof & & Acoustic Options

• Optional 30/60-minute fire ratings (BS 476 or EN 13501)
• Acoustic rating: Rw ~30–35 dB (BS EN ISO 10140)

Glazing Options

• Double: 5/15Ar/5
• Triple: 5/15Ar/5/15Ar/5
• Safety: VSG 33.1, P4 anti-burglary

Finishes

• Finishes: Clear, Milk-frosted, Graphite Reflex, Cotswold

Accessories

• Door closer, letter plate, name/number plate (Optional)
• Installation kit, charging cable, RFID cards, mechanical keys

Delivery Service Options

• DIY Delivery
• Survey and Fully Fitted Installation

Maintenance

• Annual hinge/latch lubrication
• Fingerprint/camera cleaning
• Easy battery access and replacement
• Mechanical override key included

Warranty & & Support

• 2-year standard warranty (extendable)

UK-based support and spare parts

Structure

• Door Leaf Thickness: 90mm, T-shaped with integrated subframe
• Door Size: Customisable
• Infill: XPS or honeycomb core
• Lock: Eight-bolt mechatronic patented lock body
• Cylinder: Anti-pick, anti-drill, high-security

Electronics

• Fingerprint: ~0.2s recognition, FAR < 0.0001%
• Face/Palm Vein: ~0.5–0.7s recognition, advanced IR
• Memory: Up to 128 GB onboard storage
• Display: 5.5″ or 10.1″ 720p interior touchscreen

Compliance & Performance

• Thermal: U-value ~0.7–1.4 W/m²K
• Fire Rating: BS 476 / EN 13501 (FD30/FD60 available)
• Security: PAS 24, EN 1627, LPS 1175 (on request)
• Hardware: BS EN 14846, BS EN 1906
• Ingress: IP65/IP67 (model dependent)
• Acoustic: ~Rw 30–35 dB (BS EN ISO 10140)
• EMC: RED (2014/53/EU), UK equivalents
• GDPR compliance for recording (user responsibility)

• Measuring Guide
• Technical Datasheet
• Instruction Manual
• Installation video

1. How long does the battery last?

Up to one year under normal usage conditions.

2. Can I install it on a new build or retrofit project?

Yes, it’s suitable for both new and replacement doors with standard fittings.

3. Is internet access required?

Wi-Fi is needed for full app functionality, but offline unlocking (e.g., fingerprint or passcode) works independently.

4. What happens during a power outage?

The internal battery ensures continued use, and a Type-C port allows emergency power from a power bank.

5. Is the door compatible with Alexa or Google Home?

Yes, via the mobile app and smart integration modules.

6. Can multiple users access the door?

Yes, you can enrol up to 100 fingerprints, 50 faces, and multiple app users.

7. What’s the installation process like?

Professional installation is recommended; the door is supplied pre-hung in its frame.

8. Is the door weatherproof?

Yes, sealed against wind, water and UV exposure.

9. Can I receive alerts while abroad?

Absolutely. The DORIX app supports remote video alerts and access control from anywhere.

10. Does it come with a warranty?

Yes, the DXSD10 is covered by a 2-year DORIX guarantee.
