Description

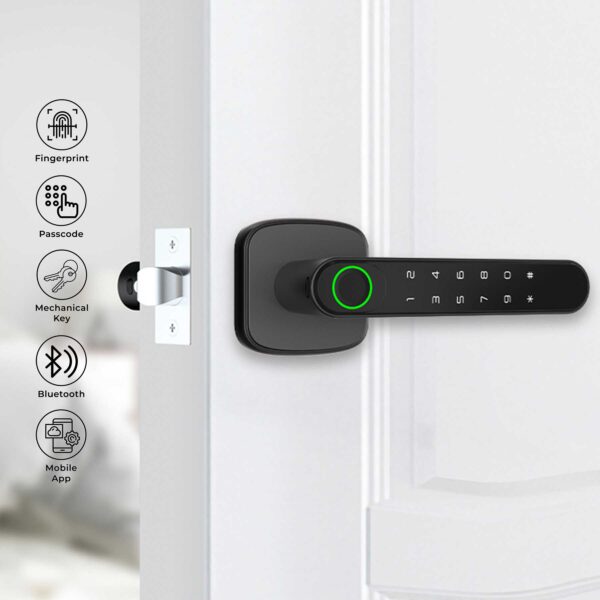

Compact in size yet powerful in performance, the DXSL10 Smart Lock offers a practical and elegant solution from DORIX for smart interior and light-duty entry doors. Whether securing a home office, letting out a room, or managing multiple units, this lock delivers easy, flexible access control with modern design.

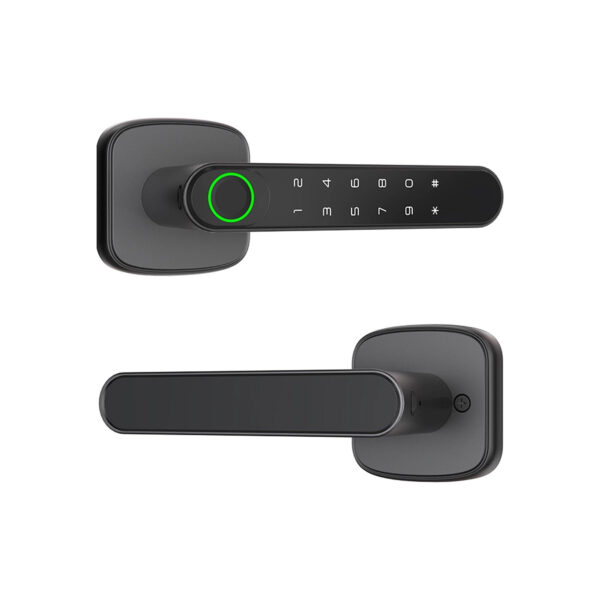

Crafted from durable aluminium alloy, the lock’s smooth U-shaped handle is ergonomically designed for daily use. The responsive touch keypad and fingerprint reader are built for speed and accuracy, while the virtual password function protects your PIN even when others are watching.

Its built-in voice assistant makes setup and use straightforward. The lock fits standard single latch mortises and now supports larger 50×85 mm mortises and dual-latch (latch + deadbolt) setups for increased versatility and security. With up to 20 stored fingerprints and full app control, DXSL10 is a sleek upgrade to traditional key systems.

Model Options

• DXSL10-01: Standard version with single latch and mechanical override

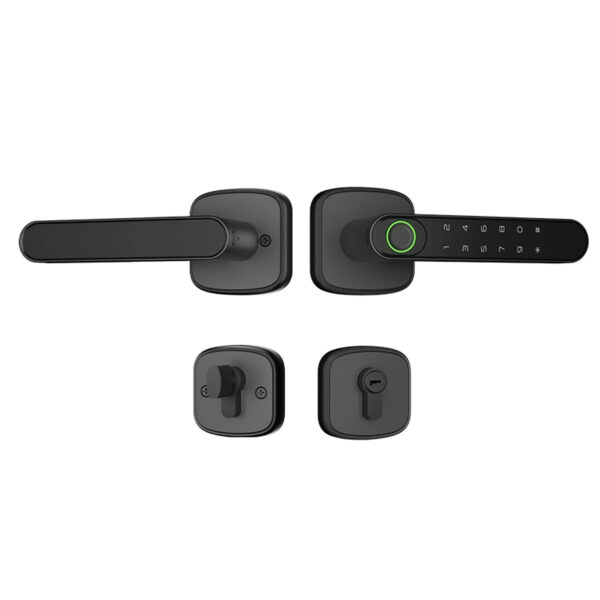

• DXSL10-02: Includes euro profile cylinder and keyhole with matching escutcheon; supports dual-latch mortise

Opening Way

• Left-hand or right-hand configurable (reversible handle design)

Accessories

• Mechanical keys x2
• Installation screws and mounting plate
• User manual
• Optional euro cylinder escutcheon (02)

Maintenance

• Replace batteries every 8–12 months (based on usage)
• Clean the sensor and keypad gently with a dry cloth
• Apply silicone grease to latch if needed

Warranty & & Support

• 2-year standard warranty
• UK-based customer service

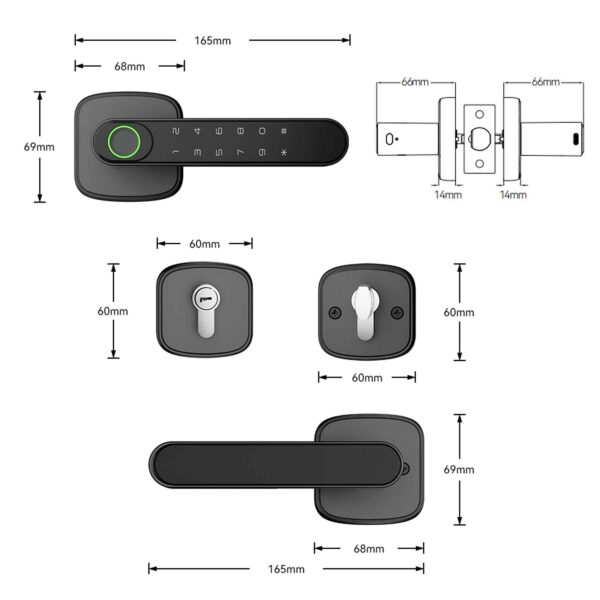

• Dimensions: 166 x 69 mm handle, 68 mm base plate, 66 mm total thickness
• Material: Aluminium alloy
• Unlocking Methods: Fingerprint, Passcode, Mechanical Key, App
• Fingerprint Sensor: Semiconductor, recognition <1s, stores up to 100 prints
• Password Capacity: Up to 20
• Power Supply: 4 x AAA batteries (not included)
• Emergency Power: Type-C (5V)
• Low Voltage Alarm: Triggers at <4.8V
• Operating Temperature: -25°C to 70°C
• Humidity: 20–90% RH
• Mortise Type: Standard single latch or optional 50×85 mm dual latch
• Connectivity: Bluetooth only
• Smart Home: Compatible with Amazon Alexa (via app)

• Technical Datasheet
• Instruction Manual
• Installation video

1. Can this lock be installed on any door?

Yes, if the door accepts a standard single latch or 50×85 mm mortise.

1. Is it suitable for main entrances?

It’s best for interior or secondary doors.

1. How long do the batteries last?

Typically 8–12 months with regular use.

1. What if the batteries die?

Use a power bank via Type-C port or the mechanical key.

1. How many fingerprints can I register?

Up to 20 with the app.

1. Does it support remote unlocking?

No, only local Bluetooth via the app.

1. Can I set permanent and temporary codes?

Yes, via the app.

1. Is it weatherproof?

No, indoor or sheltered use only.

1. Can I mute the voice prompts?

Yes, this can be adjusted in the settings.

1. What’s the difference between DXSL10-01 and 02?

01 has a simple latch; 02 includes an external key cylinder and is compatible with double-latch mortises.
